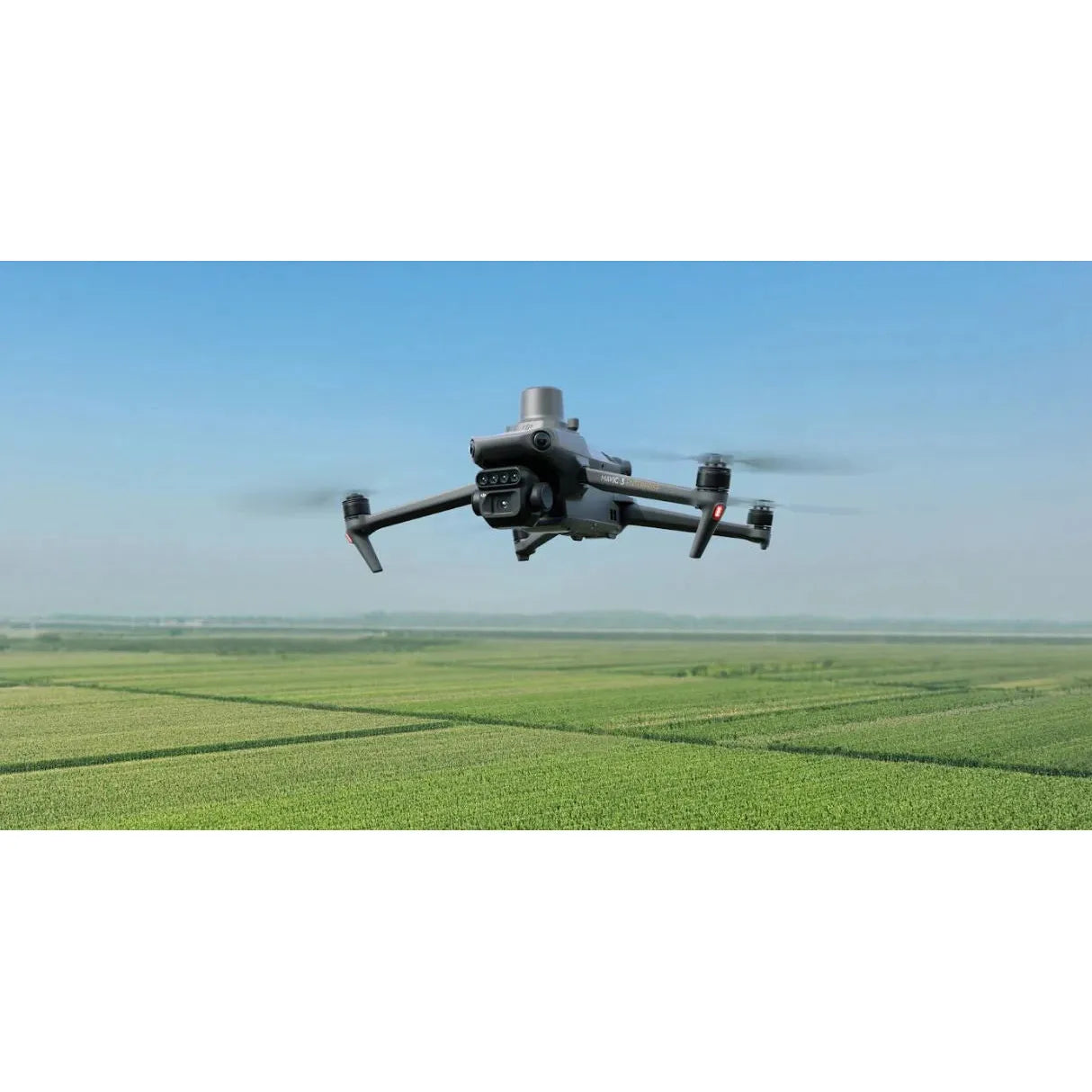

Effective aerial surveying needs to see the invisible. That's why Mavic 3 Multispectral has two forms of sight. It combines an RGB camera with a multispectral camera to scan and analyze crop growth with total clarity. Agricultural production management requires precision and data, and Mavic 3M delivers both.
Compact and portable

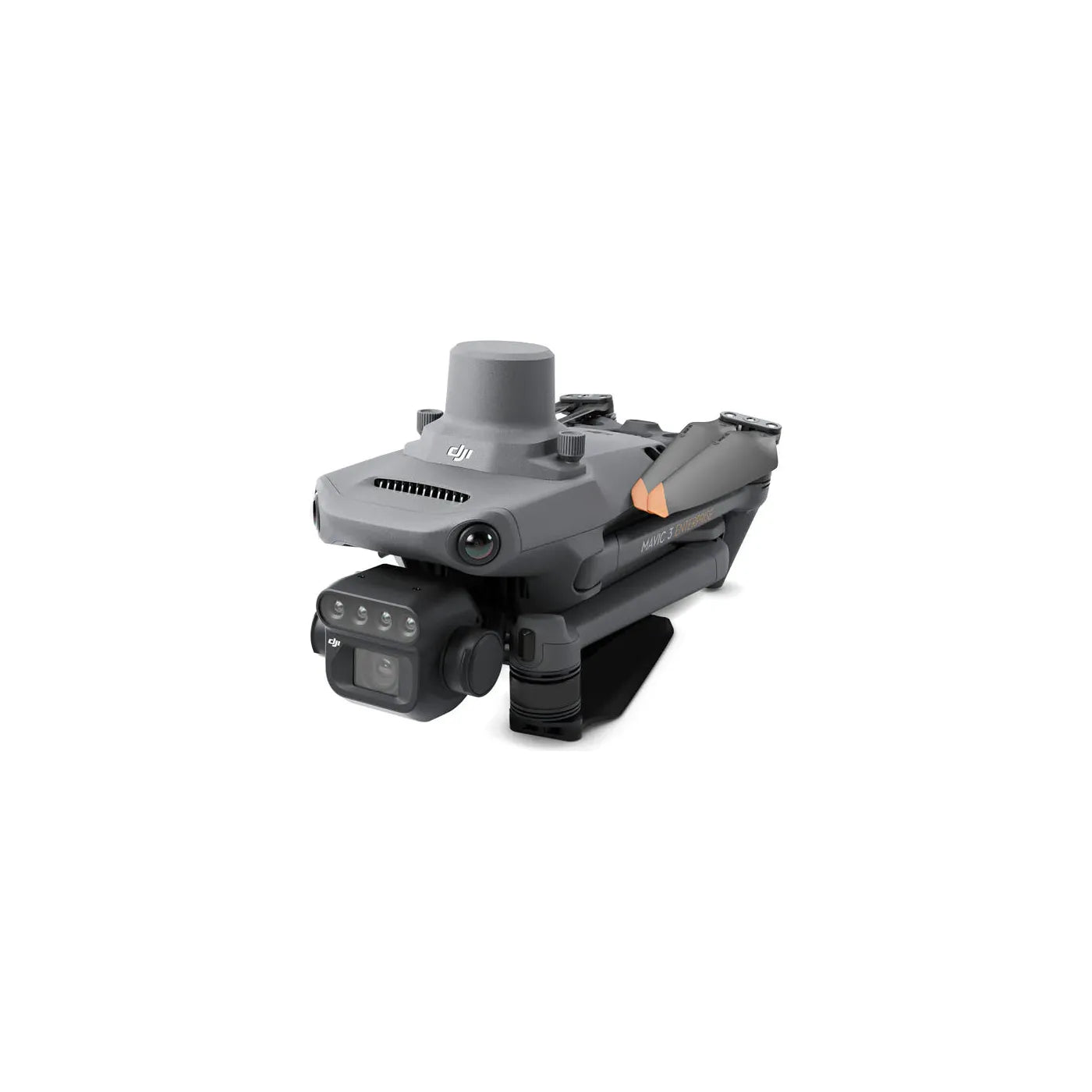

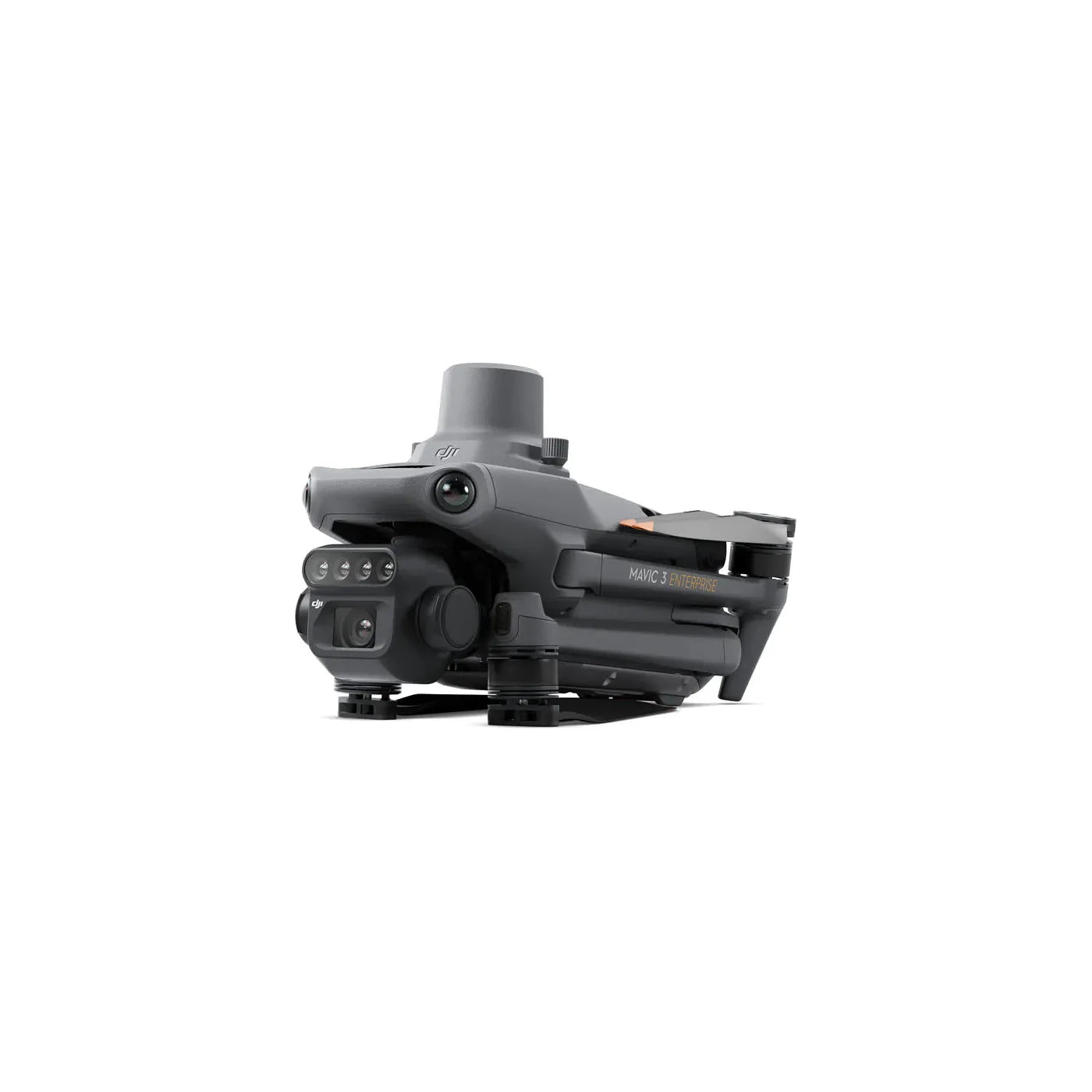

Foldable for easy storage
Multispectral Camera
4 × 5MP
G/R/RE/NIR
RGB camera
20 MP
4/3 CMOS, mechanical shutter
Safe and stable
Omnidirectional Obstacle Avoidance [1]
15km Transmission Distance [2]
Precise positioning
Centimeter-level RTK positioning
Microsecond-level time synchronization
Efficient aerial surveying
Up to 200 hectares per flight [3]
Efficient and reliable battery life
Ultra-long battery life, fast bursts
43 minutes [4]
Cruise time
200 hectare [3]
A single flight can complete mapping operations over an area of 200 hectares.
Fast charging
100W Battery Charging Hub
High-efficiency fast charging
88W fast charging
Aircraft
DJI Mavic 3 Multispectral Drone
DJI Mavic 3 Multispectral Drone
Couldn't load pickup availability

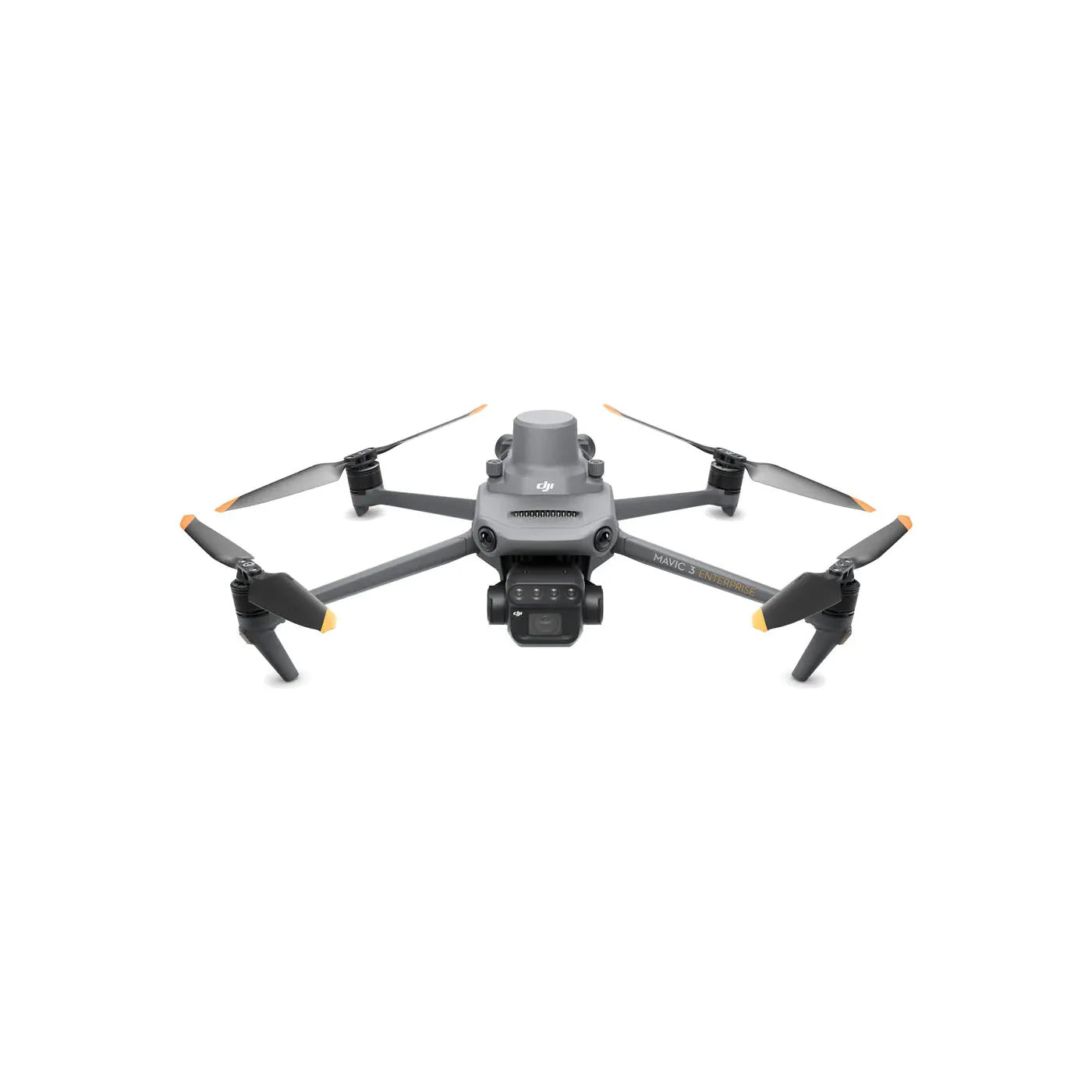

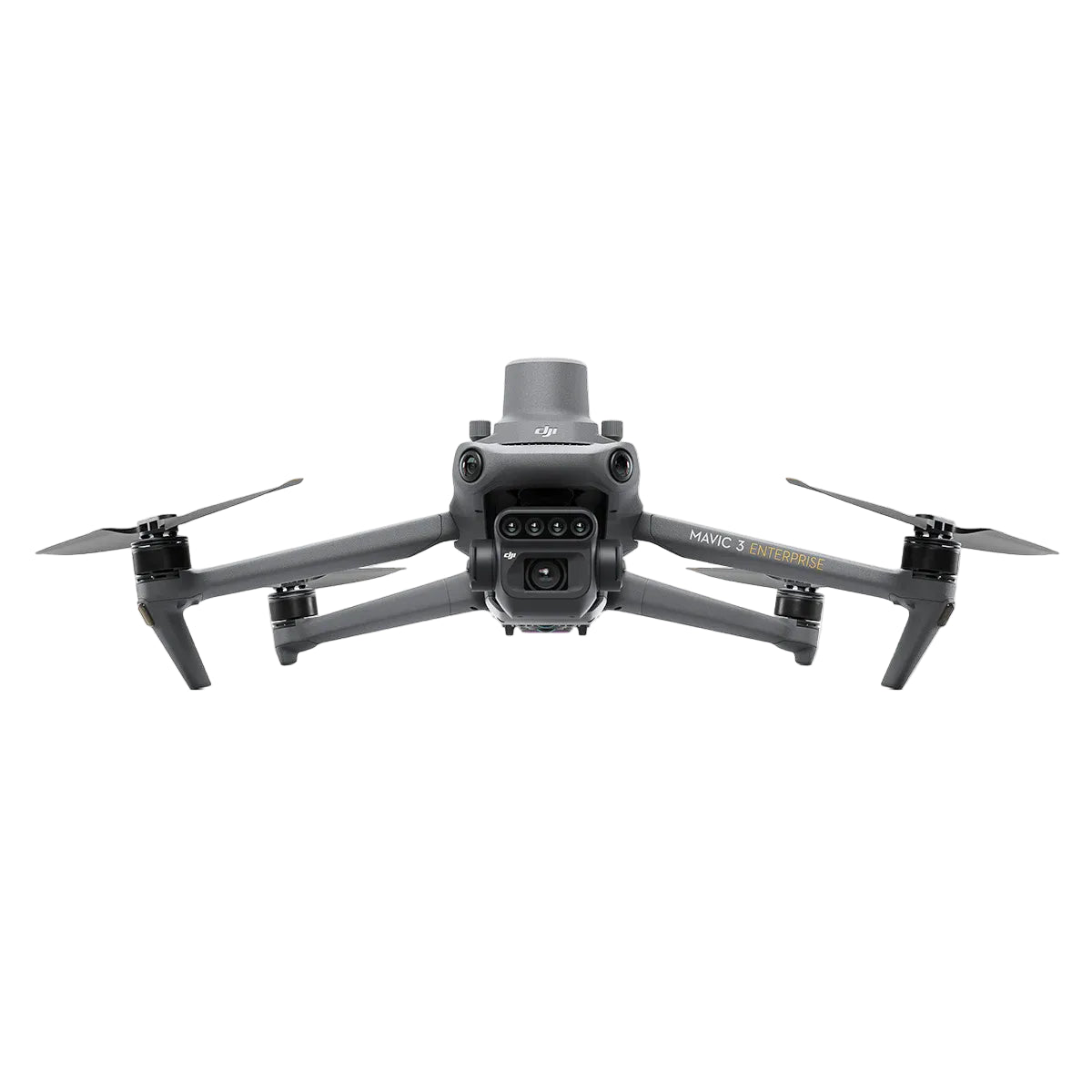

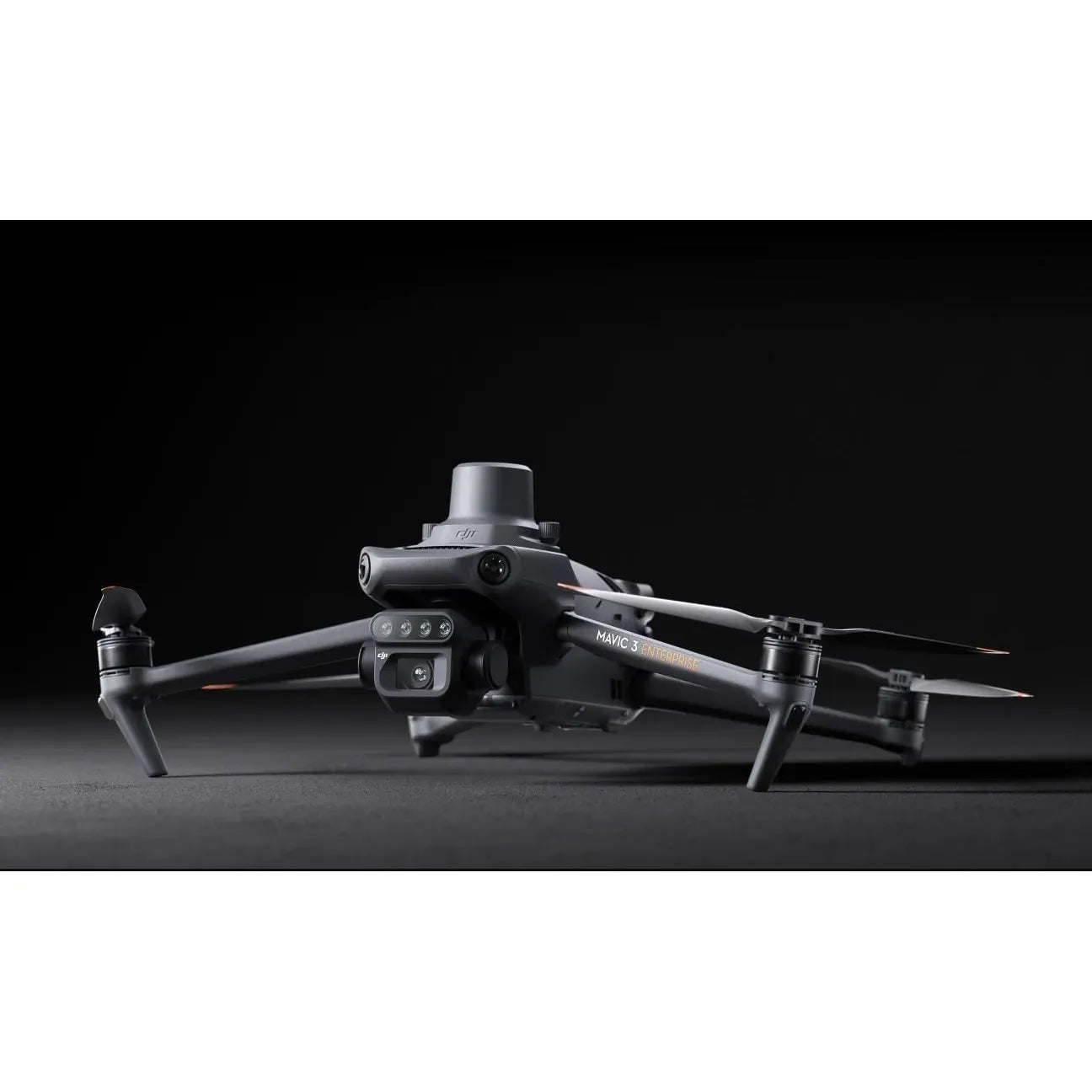

DJI Mavic 3 Multispectral Drone (M3M)
The DJI Mavic 3 Multispectral Drone (M3M) is a versatile and powerful drone designed to meet the demands of professionals in industries like mapping, inspection, construction, and public safety. With advanced features and reliable performance, the M3E ensures high precision and efficiency, enabling users to capture detailed data in complex environments. Whether you're conducting aerial surveys, inspections, or emergency response missions, the M3E provides the tools needed for optimal performance and results.
DJI Mavic 3 Multispectral Drone Key Features
- 20MP Hasselblad Camera: Equipped with a 4/3-inch CMOS sensor and wide dynamic range, the M3E captures stunning high-resolution images and videos, delivering superior image quality, even in low-light conditions.
- 56x Hybrid Zoom: The M3E features a combination of optical and digital zoom capabilities, providing exceptional versatility for capturing detailed imagery from far distances, making it ideal for inspection and mapping tasks.
- Long Flight Time: With up to 45 minutes of flight time, the M3E supports extended operations, reducing the need for frequent battery changes and ensuring uninterrupted productivity.
- RTK Positioning: The M3E integrates real-time kinematic (RTK) technology, delivering centimeter-level positioning accuracy, which is crucial for precise mapping, surveying, and inspections.
- Omnidirectional Obstacle Avoidance: Equipped with advanced sensing systems, the M3E offers omnidirectional obstacle detection, enhancing safety and autonomous navigation in complex environments.
- Modular Payload System: The M3E supports a variety of payload options, including thermal cameras, loudspeakers, and additional sensors, providing adaptability for different professional applications.
- Advanced Data Transmission: With a maximum transmission range of up to 15km, the M3E ensures reliable communication and data transfer, even over long distances.
- IP55 Rating: The M3E is dustproof and waterproof, ensuring reliable performance in harsh weather conditions, making it suitable for diverse operational environments.
- Compact and Lightweight Design: Weighing approximately 895g, the M3E is designed for portability, easy deployment, and maneuverability, without compromising on performance.
DJI Mavic 3 Multispectral Drone Specifications
Aircraft
| Specification | Details |
|---|---|
| Net Weight | 951 g (with propellers and RTK module) |
| Max Takeoff Weight | 1,050 g |
| Dimensions (Folded/Unfolded) | Folded: 223×96.3×122.2 mm; Unfolded: 347.5×283×139.6 mm |
| Diagonal Length | 380.1 mm |
| Max Ascent Speed | 6 m/s (Normal Mode); 8 m/s (Sport Mode) |
| Max Descent Speed | 6 m/s (Normal and Sport Modes) |
| Max Flight Speed | 15 m/s (Normal Mode); 21 m/s (Sport Mode, flying forward) |
| Max Wind Speed Resistance | 12 m/s |
| Max Take-off Altitude | 6000 m |
| Max Flight Time | 43 minutes |
| Max Hover Time | 37 minutes |
| Max Flight Distance | 32 km |
| Max Pitch Angle | 30° (Normal Mode); 35° (Sport Mode) |
| GNSS | GPS + Galileo + BeiDou + GLONASS (GLONASS supported only with RTK module) |
| Operating Temperature | -10° to 40° C |
| Propeller Model | 9453F Enterprise Edition |
Gimbal
| Specification | Details |
|---|---|
| Stabilization | 3-axis (tilt, roll, pan) |
| Control Range | Tilt: -135° to 90°; Roll: -45° to 45°; Pan: ±27° |
RTK Module
| Specification | Details |
|---|---|
| Positioning Accuracy | Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm |
| RTK Fix Initialization Time | Typically ≤ 1 minute |
| Supported GNSS | GPS, BeiDou, Galileo, GLONASS |
Storage
| Specification | Details |
|---|---|
| Internal Storage | Built-in 8 GB |
| Supported SD Cards | Up to 256 GB (UHS-I Speed Grade 3 recommended) |
Video Transmission
| Specification | Details |
|---|---|
| Transmission System | O3 Enterprise |
| Max Transmission Range | 15 km (FCC); 8 km (CE) |
| Max Live View Quality | 1080p@30fps |
Obstacle Sensing System
| Specification | Details |
|---|---|
| Horizontal Obstacle Sensing | Effective Distance: 0.5-200 m; FOV: 90° |
| Upward Obstacle Sensing | Effective Distance: 0.5-30 m |
| Downward Obstacle Sensing | Effective Distance: 0.5-30 m |
| Effective Obstacle Sensing | Vision sensors work in low-light conditions; infrared for added accuracy |
| GNSS | GPS, Galileo, BeiDou |
Battery
| Specification | Details |
|---|---|
| Model | DJI Intelligent Flight Battery |
| Battery Type | LiPo 4S |
| Capacity | 5000 mAh |
| Energy | 77 Wh |
| Voltage | 15.4 V |
| Charging Temperature | 5° to 40° C |
Battery Charger
| Specification | Details |
|---|---|
| Model | DJI Battery Charging Hub |
| Input Voltage | 17.6 V |
| Max Charging Time | 96 minutes per battery |
Looking For a comprehensive overview, check the Specifications and Document Downloads of DJI Mavic 3 Multispectral Drone directly from the brand.
