Firefighting
Drones are Keeping Firefighters Safe and Save Lives
Quick Risk Assessment
The Mavic 3T offers unparalleled portability for quick deployment missions. Easy to carry on fire response vehicles and equipped with visual and thermal cameras, it's the ideal solution for initial risk evaluations.
- Compact and lightweight design, less than 1kg and easy to carry in the response vehicle.
- Fast and easy deployment, get airborne in around 30 seconds.
- 640 × 512 thermal radiometric sensor for accurate temperature readings.
- Thermal palettes and temperature measurement tools for easy data interpretation.
Drone Platform

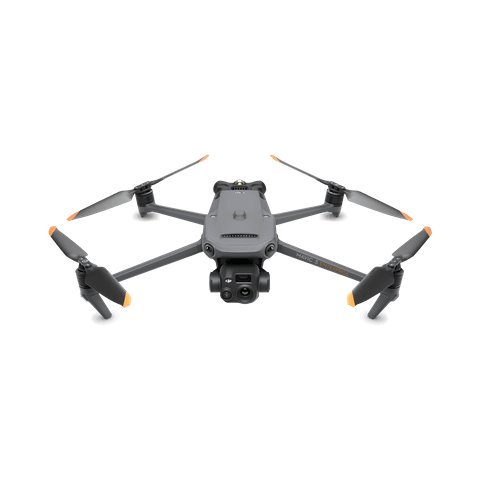

DJI Mavic 3T
Weight: 920 g
Max Flight Time (no wind): 45 mins
Sensing type: Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
Environment Adapbility: Max Take-off Altitude Above Sea Level 6000m; Max Wind Speed Resistance 12 m/s
Wide Camera: 1/2-inch CMOS, Effective pixels: 48 MP
Tele Camera: 1/2-inch CMOS, Effective pixels: 12 MP
Thermal Camera: Video Resolution 640×512@30Hz
Compatible with RTK module and DJI Cellular module
Payload And Software
DJI Pilot 2
Ground control
DJI FlightHub 2
Drone and dock's cloud management system
Workflow
- Mission Execution:
- Fly manually over the affected area looking for hotspots. Switch between infrared and visual views to evaluate the situation.
- Select a suitable infrared palette and gain mode for the conditions at hand.
- Use orbit flights to perform 360 circular flights around the structure, facilitating the risk evaluation.
- Use the Link Zoom feature to zoom in simultaneously with thermal and visual sensors.
- Share live feed with command staff through DJI FlightHub 2. - Post Mission Documentation:
- Collect the videos and photos captured during the mission through DJI FlightHub 2 or download from drone SD card to be used as evidence or debrief documentation.
High Performance Fire Response
The Matrice 350 RTK, equipped with the Zenmuse H30T, brings enhanced thermal capabilities to fire response. Using the new H30T Night Scene mode, fire brigades can now gain valuable insights during low-light operations
- Reliable multipurpose drone platform easily adapts to the mission needs.
- Powerful infrared sensor with 1280 × 1024 resolution provides superb thermal imagery.
- Robust and weatherproof airframe graded IP54, allows you to fly when is most needed.
- Laser range finder to get accurate coordinates of objects up to 3,000 meters range.
- Enhanced full-color or black-white night vision to easily identify risks.
Drone Platform

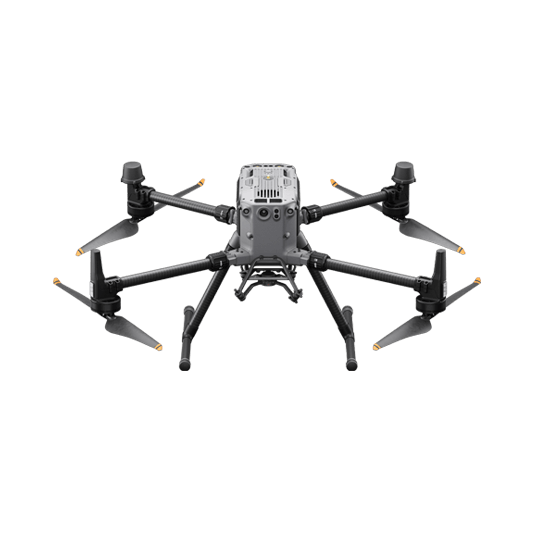

Matrice 350 RTK
Weight: Approx. 6.47 kg(with single downward gimbal and two TB65 batteries).
Max Flight Time: 55 minutes.
Sensing system: Six-directional sensing and positioning.
Environment Adaptability: IP55, Max Service Ceiling Above Sea Level 7,000 m (with 1676 propellers,without other payload); Max Wind Resistance 12 m/s.
Payload And Software

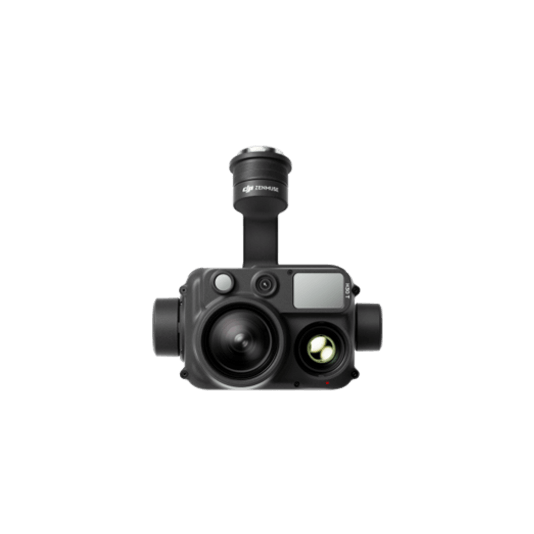

Zenmuse H30T
Weight: 920±5 g.
Ingress Protection Rating: IP54.
Zoom Camera:1/1.8-inch CMOS, Effective Pixels: 40 MP.
Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP.
Infrared Thermal Camera: 1280×1024@30fps.
Laser Range Finder: max range 3000 m.
DJI Pilot 2
Ground control
DJI FlightHub 2
Drone and dock's cloud management system
Workflow
- Mission Execution:
- Fly manually over the affected area looking for hotspots. Switch between infrared and visual views to evaluate the situation.
- Use the Link Zoom feature to zoom in simultaneously with thermal and visual sensors.
- Select a suitable infrared palette and gain mode for conditions at hand.
- Install the IR Density Filter to increase the measurement range of the thermal sensor.
- Get the coordinates of hotspots using the laser range finder and the Pin Point function.
- Share the coordinates with ground teams through the DJI Pilot 2 QR code or DJI FlightHub 2. - Post Mission Documentation:
- Collect the videos and photos captured during the mission through DJI FlightHub 2 to be used as evidence or debrief documentation.
