Mining Survey
Painpoints
Mining survey environments are often remote and fraught with safety risks that threaten personnel safety.
Traditional ground-based survey methods are costly, timely, and inefficient.
Ensuring data quality through traditional methods can be challenging.
Advantages
Swiftly cover vast and hazardous areas, significantly streamlining data collection process and enhancing personnel safety.
Reduce cost and improve efficiency with easy-to-deploy aerial data collection solutions.
Repeat data collection missions ensuring the data quality and accuracy.
Solution
Portable Stockpike Measurement Solution
The DJI Mavic 3E is a portable surveying and mapping drone suitable for single-pilot operations. Paired with DJI Terra, it can generate accurate 2D and 3D models with significant reduction on the ground control points.
- Portable solution, easy to operate and to carry across multiple mine sites.
- Reliability and high accuracy even when flying at high altitudes.
- The Real-Time Terrain Following mode allows the Mavic 3E to adjust its altitude in real time, ensuring a consistent height relative to the terrain being mapped.
Drone Platform

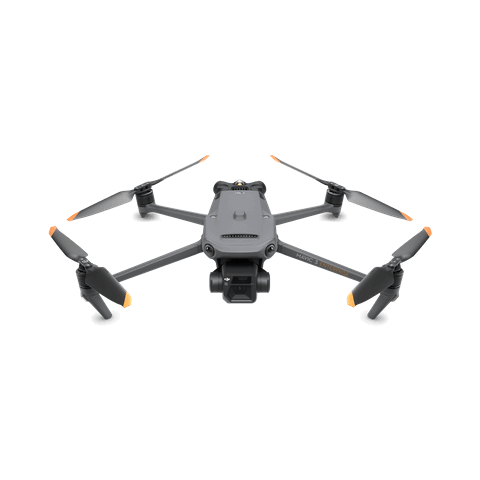

DJI Mavic 3E
Weight: 915 g.
Max Flight Time (no wind): 45 mins.
Sensing type: Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
Environment Adaptability: Max Take-off Altitude Above Sea Level 6,000 m; Max Wind Speed Resistance 12 m/s.
Wide Camera: 4/3 CMOS, Effective pixels: 20 MP.
Mechanical Shutter: 8-1/2000 s,supports rapid 0.7-second interval shooting.
Compatible with RTK module and DJI Cellular module.
Payload And Software
DJI Pilot 2
Ground control
DJI Terra
Modeling and flight mission plan
Workflow
- Data Collection: Plan a 2D map mission for regular orthomosaic data acquisition or a waypoint mission for regular site video recording and pano stitching.
- Data Processing: Import the data to DJI Terra to process for DOM, DSM, Point Cloud, and 3D model outputs.
- Data analysis: Perform anotations, measurements and volume analysis directly in DJI Terra. Import resulting DOM, DSM or 3D models into your preferred 3rd Party software for further analysis.
Full-Frame High Performance Surveying and Mapping Solution
Matrice 350 RTK paired with the Zenmuse P1 full-frame sensor and it's Smart Oblique Capture feature takes aerial surveying efficiency and accuracy to a whole new level. Combine with DJI Terra for an efficient and integrated UAS surveying and mapping solution.
- Reliable multi-purposed drone platform.
- Zenmuse P1 has a 45MP, full-frame sensor to ensure high quality data collection.
- Field-work efficiency—covers 3 km² per flight, delivering a 5cm GSD.
- Generate accurate centimeter-level deliverables significantly reducing Ground Control Points.
Drone Platform
Matrice 350 RTK
Weight:Approx. 6.47 kg(with single downward gimbal and two TB65 batteries).Max Flight Time:55 minutes.Sensing system:Six-directional sensing and positioning.Environment Adaptability:IP55, Max Service Ceiling Above Sea Level 7,000 m (with 1676 propellers,without other payload); Max Wind Resistance 12 m/s.
Payload And Software

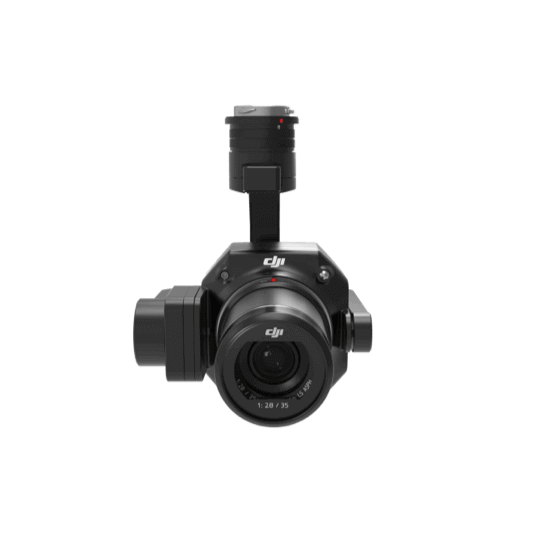

Zenmuse P1
45 MP Full-frame camera.
Global Mechanical Shutter Shutter Speed 1/2000 Seconds.
3-axis Stabilized Gimbal Smart Oblique Capture.
DJI Pilot 2
Ground control
DJI Terra
Modeling and flight mission plan
Workflow
- Data Collection: Plan a 2D map mission for regular orthomosaic data acquisition or a waypoint mission for regular site video recording and pano stitching.
- Data Processing: Import the data to DJI Terra to process for DOM, DSM, Point Cloud, and 3D model outputs.
- Data analysis: Perform anotations, measurements and volume analysis directly in DJI Terra. Import resulting DOM, DSM or 3D models into your preferred 3rd Party software for further analysis.
