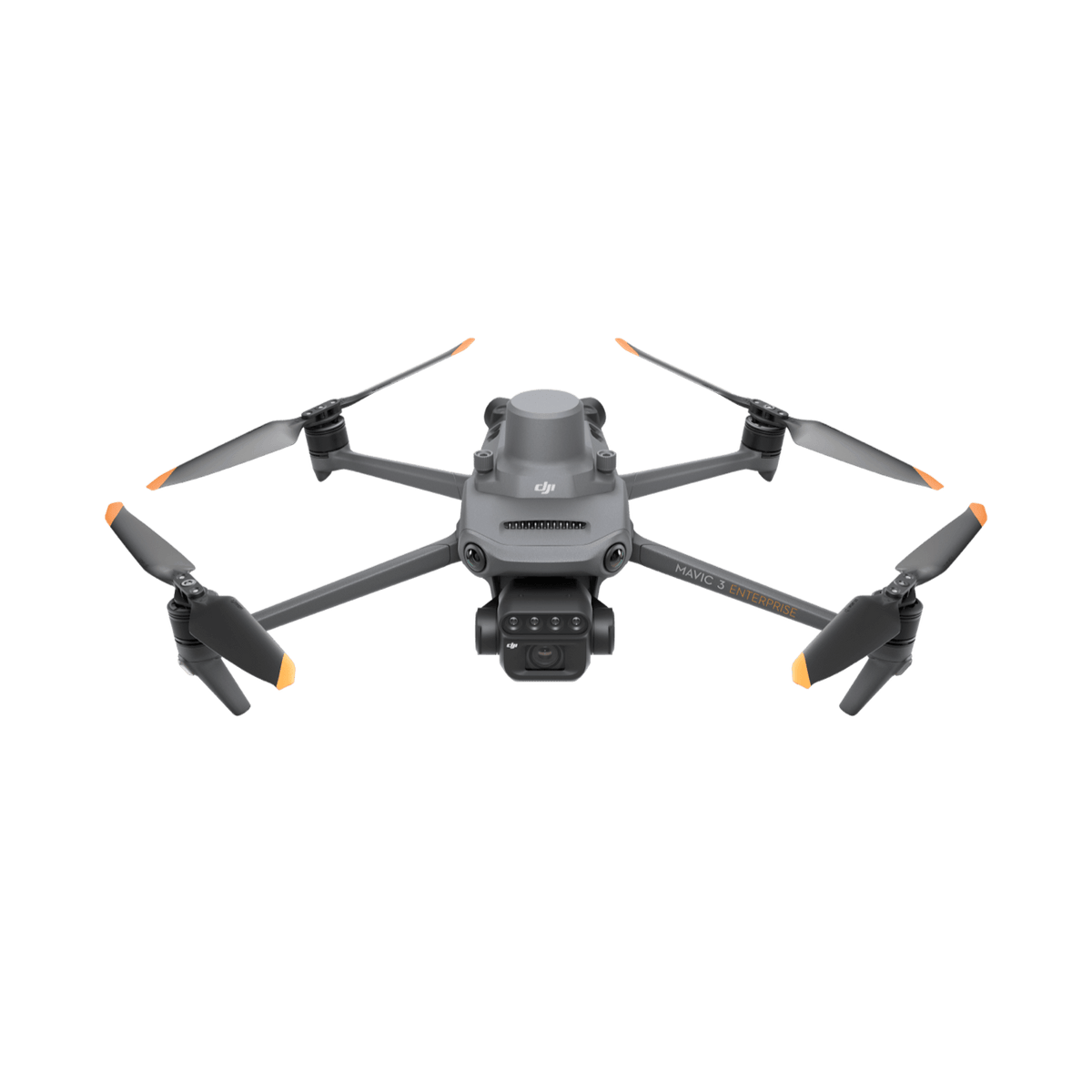

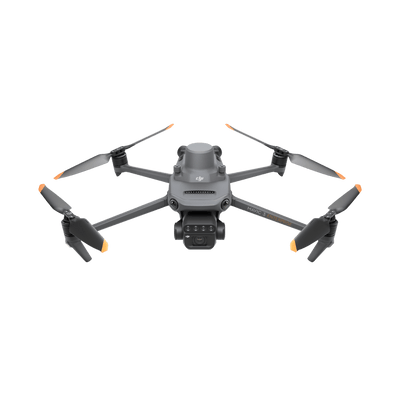

DJI Mavic 3M give you Multispectral Power for Smart Farming
The DJI Mavic 3M combines a high-resolution 20MP RGB camera with four 5MP multispectral sensors (Green, Red, Red Edge, NIR). Generate actionable insights on crop vigor, nutrient deficiencies, pests, and irrigation needs — essential for efficient custom application businesses.
Key Features
- Multispectral Imaging + sunlight sensor for accurate vegetation indices
- 20MP RGB Mechanical Shutter Camera for detailed visual records
- RTK included for high-accuracy geotagging
- Integration with DJI SmartFarm platform
- Up to 43 minutes flight time
- Omnidirectional avoidance for reliable operation over crops
Why Avary Drone Applicators Love It
New spray businesses: Use multispectral data to create prescriptions and win contracts. Established applicators: Reduce waste, improve results, and offer premium scouting services. Seamlessly sync with DroneTrax for invoicing, reports, and fleet management.
Bundles with Agras T50/T100, Drone Cone mixing systems, and full training packages available.
NDVI & Multispectral Crop Analysis
The DJI Mavic 3M empowers you with powerful NDVI (Normalized Difference Vegetation Index) mapping and other vegetation indices (NDRE, GNDVI, etc.). By capturing Near-Infrared and Red light reflectance, it quickly reveals crop health, nutrient deficiencies, pest pressure, water stress, and areas needing targeted treatment — all before visible symptoms appear.
For new spray businesses: Generate professional prescription maps to win contracts and demonstrate value to growers.
For established custom applicators: Optimize variable rate applications, reduce chemical costs, minimize environmental impact, and improve yields — boosting your margins and reputation.
Compared with the Mavic 3E
DJI Mavic 3M (Multispectral): Optimized for precision agriculture. Same strong RGB camera as the 3E + four 5MP multispectral sensors (Green, Red, Red Edge, NIR) plus sunlight sensor for NDVI, NDRE, etc. Enables crop health monitoring, pest/disease detection, variable rate application mapping, and yield optimization. Slightly heavier (~951g with RTK), ~43 min flight time, integrates with DJI SmartFarm platform.
Aircraft
-
- Net Weight (with propellers and RTK module): 2.10 lbs (951 g)
- Max Takeoff Weight: 2.31 lbs (1,050 g)

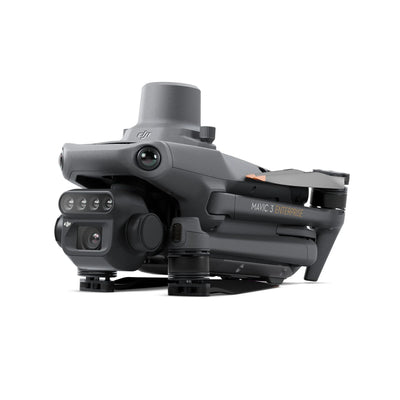

- Dimensions (Folded without propellers): 8.78 × 3.79 × 4.81 inches (223 × 96.3 × 122.2 mm)
- Dimensions (Unfolded without propellers): 13.68 × 11.14 × 5.50 inches (347.5 × 283 × 139.6 mm)
- Diagonal Length: 14.96 inches (380.1 mm)
- Max Ascent Speed: 6 m/s (Normal), 8 m/s (Sport)
- Max Descent Speed: 6 m/s (Normal & Sport)
- Max Flight Speed (sea level, no wind): 15 m/s (Normal); up to 21 m/s forward (Sport)
- Max Wind Speed Resistance: 12 m/s (26.8 mph)
- Max Take-off Altitude: 19,685 ft (6,000 m)
- Max Flight Time (no wind): 43 minutes
- Max Hover Time (no wind): 37 minutes
- Max Flight Distance: 32 km (19.88 miles)
- Max Pitch Angle: 30° (Normal), 35° (Sport)
- Max Angular Velocity: 200°/s
- GNSS: GPS + Galileo + BeiDou + GLONASS (GLONASS with RTK)
- Hovering Accuracy: Vertical ±0.1 m (with Vision/RTK); Horizontal ±0.1–0.5 m
- Operating Temperature: 14°F to 104°F (-10°C to 40°C)
- Motor Model: 2008
-
Propeller Model: 9453F Enterprise Edition
RGB Camera
- Image Sensor: 4/3 CMOS, 20 MP
- Lens: FOV 84°, 24 mm equivalent, f/2.8–f/11, focus 3.28 ft to ∞ (1 m to ∞)
- ISO Range: 100–6400
- Shutter Speed: Mechanical 8–1/2000 s; Electronic 8–1/8000 s
- Max Image Size: 5280 × 3956
- Photo Modes: Single, Timed, Panorama
- Video Resolution: 4K/30fps, FHD/30fps
- Max Video Bitrate: 130 Mbps (4K)
- Formats: JPEG/DNG (RAW), MP4 (H.264)
Multispectral Camera (Key for Precision Ag)
- Image Sensor: 4 × 1/2.8-inch CMOS, 5 MP each
- Bands: Green (560 ±16 nm), Red (650 ±16 nm), Red Edge (730 ±16 nm), NIR (860 ±26 nm)
- Lens: FOV ~73.91°, 25 mm equivalent, f/2.0, fixed focus
- Max Image Size: 2592 × 1944
- Formats: TIFF (photos), MP4 (video with NDVI/GNDVI/NDRE)
- Sunlight Sensor: Built-in for accurate index calibration
Gimbal, Sensing & Transmission
- Gimbal: 3-axis mechanical, excellent stability (±0.007°)
- Sensing: Omnidirectional vision + bottom infrared (detailed avoidance ranges up to 25 m lateral, etc.)
- Video Transmission: DJI O3 Enterprise, up to 15 km (FCC), 1080p/30fps live view
- RTK Module: Weight ~0.05 lbs (24 g), cm-level accuracy
Battery & Remote
- Battery Weight: 0.74 lbs (335.5 g), 5000 mAh, 77 Wh
- DJI RC Pro Enterprise Weight: 1.50 lbs (680 g) approx.
- Charging: 100W hub/charger support
